双频多系统GNSS定位芯片

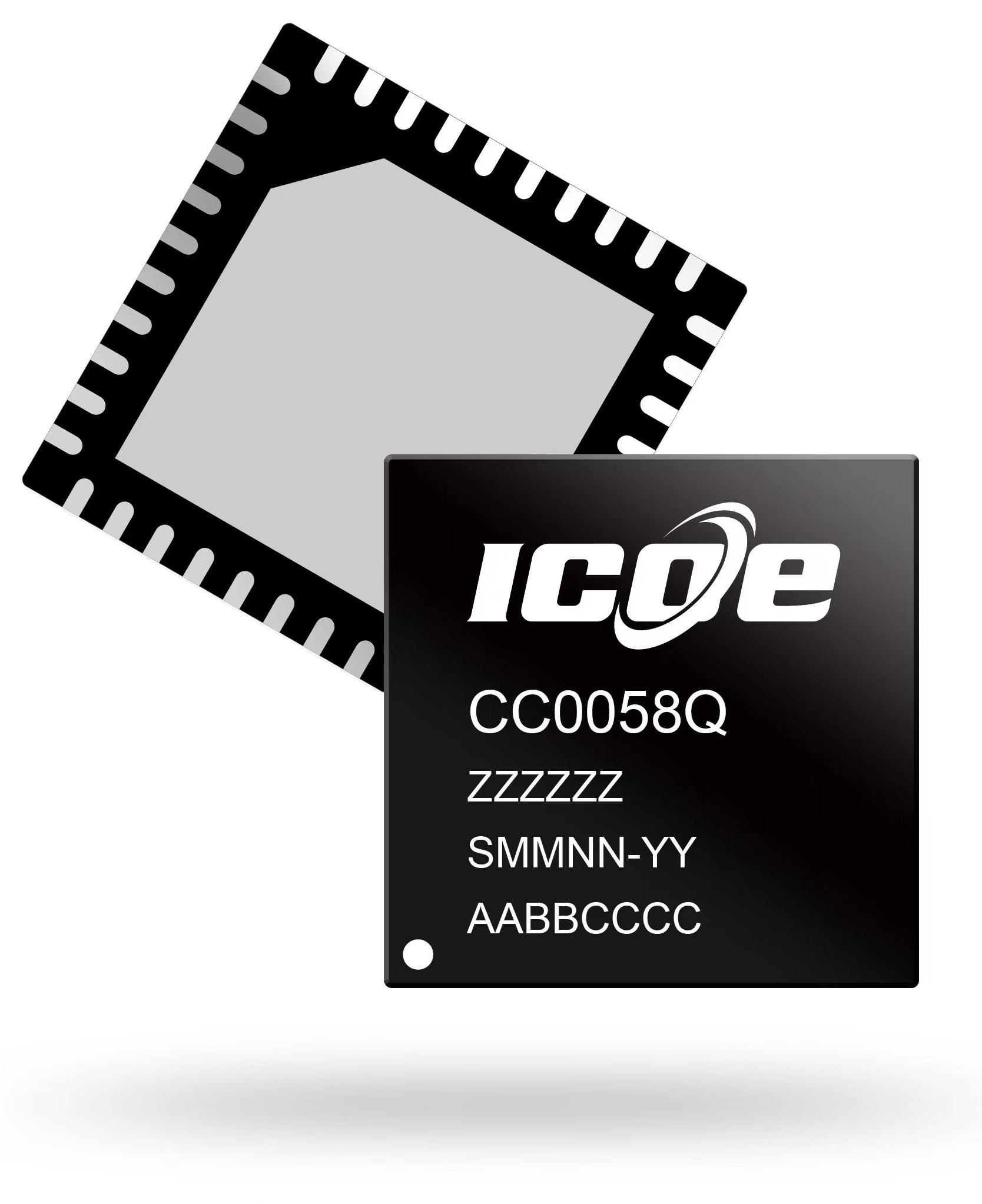

CC0058Q is a dual-frequency and multi-system high-precision GNSS chip developed by ICOE, which features high precision, high sensitivity, strong anti-interference ability, and other characteristics.
This chip is suitable for global applications and can simultaneously support BDS, GPS, GLONASS, Galileo, QZSS, and NAVIC positioning systems. Based on the built-in high-performance CPU and double-precision floating-point operation unit, it can realize L1+L5 dual-frequency multi-system joint positioning and on-chip RTK high-precision positioning, achieving centimeter-level positioning accuracy.It can be widely used in shared bicycles, electric bicycles, handheld devices, smart logistics, smart agriculture, and other application fields.

Learn more

Technical advantages

High precision, miniaturization, integration

Based on advanced technology, the dual-band multi-system high-precision GNSS SoC design has realized miniaturization and RF baseband integration

Designed for global applications, supporting multi-star system dual-frequency joint positioning

Can support BDS, GPS, GLONASS, Galileo, QZSS, and NAVIC multi-star system L1+L5 joint positioning.

Supports multiple positioning modes

Supports multiple positioning modes，including single-point positioning and centimeter-level RTK positioning mode

Ultra-high sensitivity

Capture sensitivity better than -149 dBm and tracking sensitivity better than -165 dBm

Supports active antenna

Detection with built-in detection circuitry for low-cost antenna detection functionality

Package

QFN40：5x5x0.85(mm)，3000pcs/reel

Product Specifications

Technical performance

Constellations

BDS: B1I、B1C^*、B2a、B2b^*
GPS: L1C/A、L1C、L5
GLONASS: L1
Galileo: E1B/C、E5b、E5a
QZSS: L1、L5
SBAS: L1
NAVIC: L5

Accuracy^①

RMS <1.0m （(dual-frequency four-systems, open sky)
Velocity accuracy：0.1m/s

1PPS

20ns(2sigma)

TTFF^②

Cold start：24s
Hot start：1s
Re-acquisition：1s

Sensitivity^③④

Cold start(dBm)：-149
Hot start(dBm)：-157
Tracking(dBm)：-165
Re-acquisition(dBm)：-160

Tracking power consumption

Dual-frequency＜25mW (external eBuck power supply mode)
Single-frequency＜20mW ＜25mW(external eBuck power supply mode)

Update Rate

1Hz~10Hz

Data format

NMEA-0183，ICOE protocol

Others

Main power supply

1.7V~3.6V

IO power supply

1.7V~3.6V

Backup power supply

1.7V~3.6V

Communication interface

UARTⅹ2，I²C^*ⅹ2，SPI^*ⅹ2

Operating temperature

-40~+85℃

Storage temperature

-40~+125℃

Reliability and certification

Complies with JEDEC standards, RoHS and REACH requirements

Package

BGA：3.8ⅹ4.2ⅹ0.8mm，3000pcs/roll

Operational limites

Dynamic range≤4g
Altitude≤18,000m
Velocity≤500m/s

Note:
^①Simulated 33m/s linear motion scenario under a simulator
^②Tested under instrument with satellite signal strength of -130dBm
^③Tested under CN0 of 41dB/Hz condition at -130dBm
^④Tested under external LNA conditions^*Indicates that this feature is under development.
(The detailed parameters of the product shall be subject to the latest version of the product datasheet)
